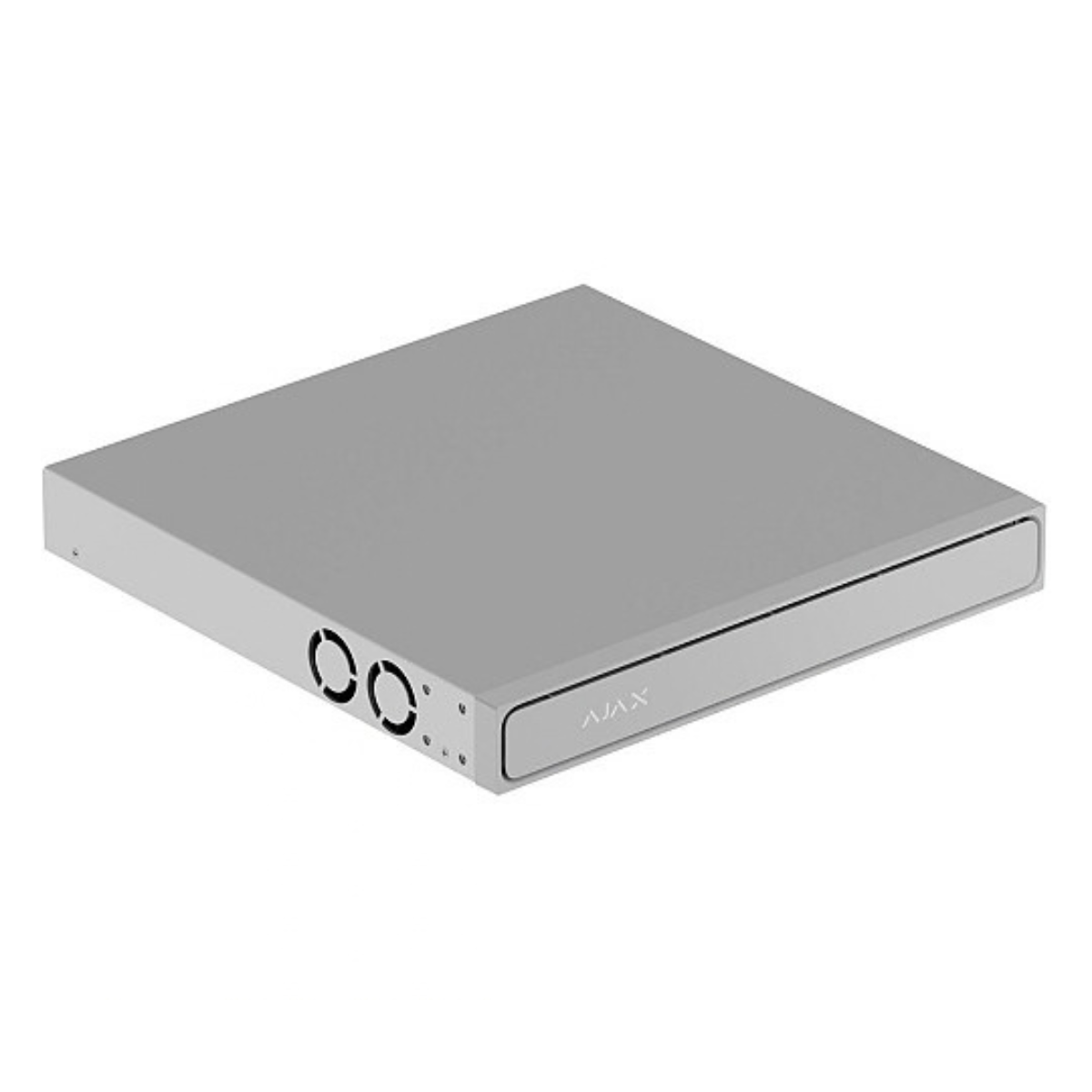

Ajax H2D16PAC 16-Channel PoE NVR | 4K Hot-Swap

Description

Ajax H2D16PAC Cyprus is a professional 16-channel network video recorder engineered for demanding video surveillance installations where performance, storage reliability and continuous operation are essential.

With 16 integrated PoE ports, up to 160Mbps incoming and outgoing bandwidth, 4K HDMI output and support for two hot-swappable SATA hard drives, the H2D16PAC provides a complete recording platform for professional Ajax surveillance systems.

Professional 16-Channel Video Surveillance

Ajax H2D16PAC Cyprus supports up to 16 IP video channels, making it suitable for larger homes, offices, retail locations, warehouses and commercial premises.

The recorder supports Ajax cameras as well as compatible third-party IP cameras through ONVIF Profile S/T or RTSP.

This gives installers greater flexibility when creating a new Ajax surveillance system or integrating the recorder into an existing IP camera infrastructure.

16 Integrated PoE Ports

One of the key advantages of Ajax H2D16PAC Cyprus is its integrated 16-port PoE switch, simplifying professional CCTV installations.

Each camera can receive network connectivity and electrical power through a single Ethernet cable, significantly simplifying professional CCTV installation.

The recorder provides 16 × 10/100Mbps IEEE 802.3af/at PoE ports with a total PoE budget of up to 160W and up to 25W available per port.

A separate Gigabit Ethernet connection provides 10/100/1000Mbps network connectivity.

Up to 160Mbps Bandwidth

The H2D16PAC provides up to 160Mbps incoming bandwidth and 160Mbps outgoing bandwidth.

This performance is designed to accommodate multiple high-resolution IP camera streams simultaneously while maintaining reliable recording and network access.

For installations using numerous high-resolution cameras, available recorder bandwidth is an important consideration when designing the complete surveillance system.

Recording Resolution up to 12MP

The recorder supports a wide selection of camera resolutions, including:

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p and 720p.

This enables the H2D16PAC to work with high-resolution surveillance cameras and provides flexibility when different camera resolutions are used within the same installation.

4K HDMI Video Output

For professional local monitoring, the recorder includes an HDMI output supporting resolutions up to 3840 × 2160 pixels.

This allows the surveillance system to be connected directly to a compatible 4K monitor or television.

Multiple live-view layouts are available, making it possible to monitor numerous cameras simultaneously from a local security station.

Dual Hot-Swap HDD Storage

Storage reliability is one of the most important features of the Ajax H2D16PAC.

Ajax H2D16PAC Cyprus provides two SATA III HDD bays with hot-swap capability for professional surveillance storage.

That provides a potential total physical storage capacity of up to 32TB, depending on the selected storage configuration.

Both 2.5-inch and 3.5-inch compatible drives are supported.

Hard drives are not included.

Hot-Swap for Continuous Operation

The hot-swap architecture allows compatible storage drives to be replaced or serviced without conventional system shutdown procedures.

For professional security installations where recording interruptions should be minimized, this provides a significant operational advantage.

The recorder is therefore particularly suitable for businesses and other installations requiring high system availability.

Redundancy and Split Recording Modes

The H2D16PAC provides two important storage strategies.

Redundancy Mode records the same video streams onto two storage devices, helping protect important recordings against the failure of an individual drive.

Split Mode distributes video streams between the installed drives, optimizing available storage capacity and system load.

The appropriate configuration can therefore be selected according to whether maximum recording redundancy or storage efficiency is the priority.

H.265, H.264 and JetSparrow

The recorder supports H.265 and H.264 video formats together with Ajax JetSparrow technology.

Efficient video compression helps reduce storage and bandwidth requirements while maintaining the video quality required for surveillance applications.

Intelligent Motion and Object Detection

Built-in motion detection can operate across up to 16 channels.

When compatible Ajax cameras are used, the system can also take advantage of AI-powered object detection provided by the cameras.

This helps operators concentrate on meaningful surveillance events rather than continuously reviewing ordinary footage.

Ajax Video Management Experience

The H2D16PAC integrates into the Ajax video surveillance environment, providing access to features such as customizable video walls, event filtering and interactive archive navigation.

Recorded footage can be reviewed using an interactive timeline, helping operators locate relevant events more efficiently.

Ajax alarm events can also be associated with video, allowing security events to be visually verified.

ONVIF and RTSP Integration

Professional installations are not limited exclusively to Ajax cameras.

Support for ONVIF Profile S/T and RTSP allows compatible third-party IP cameras to be integrated into the surveillance system.

This is particularly useful when upgrading an existing installation where compatible cameras are already installed.

Technical Specifications

Why Buy Ajax H2D16PAC Cyprus from EMAGCY?

The Ajax H2D16PAC Cyprus is designed for surveillance projects where a conventional entry-level NVR is no longer sufficient.

Its combination of 16 integrated PoE camera connections, 160Mbps bandwidth, recording resolutions up to 12MP and 4K local HDMI monitoring provides the performance required for sophisticated residential and commercial installations.

Dual hot-swappable HDD bays offer up to 32TB of potential physical storage capacity while providing redundancy and split recording options for different security requirements.

Compatibility with Ajax cameras, ONVIF and RTSP also provides flexibility when designing new systems or upgrading existing surveillance installations.
