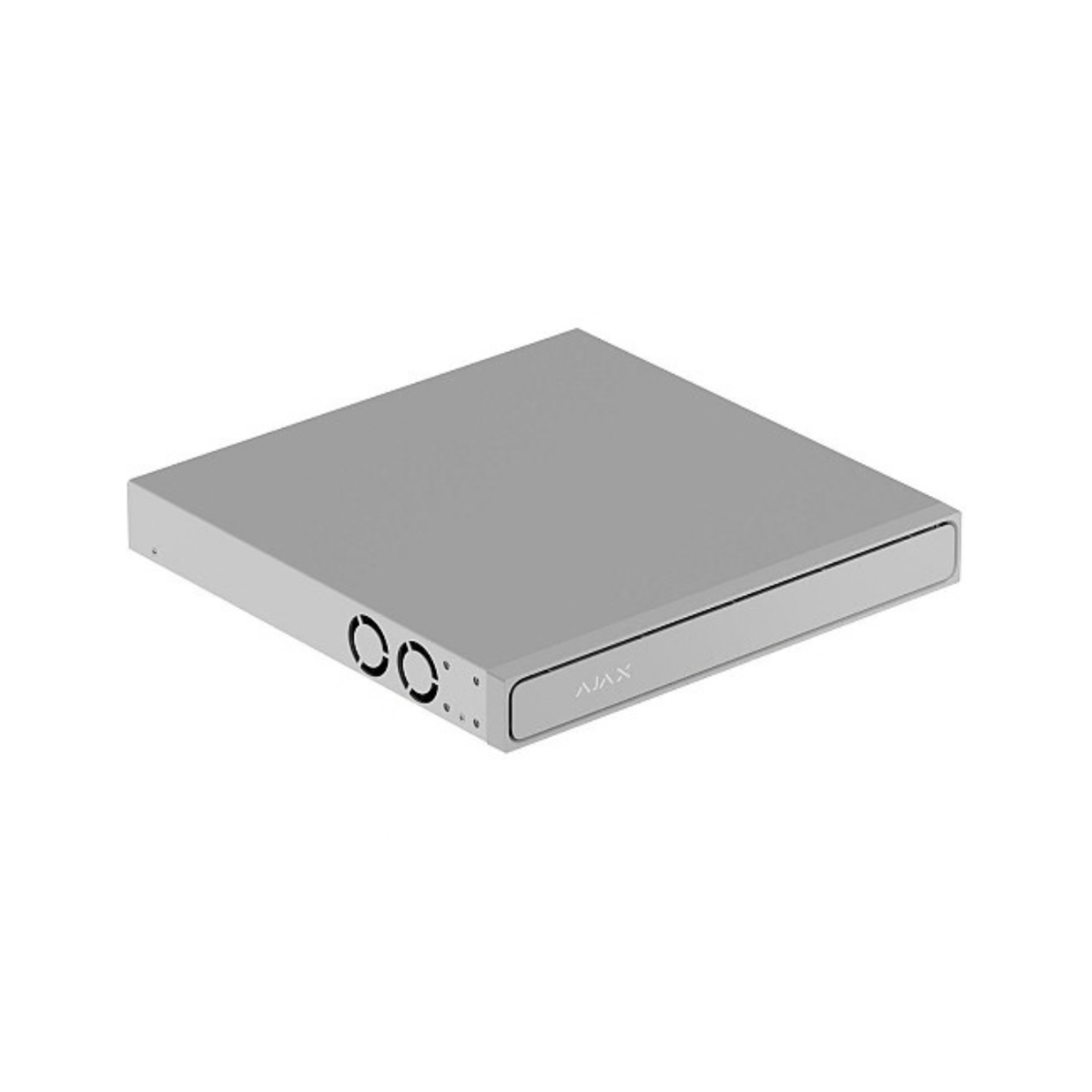

Ajax H2D8PAC 16-Channel NVR | 8 PoE & 4K Hot-Swap

Description

Ajax H2D8PAC Cyprus is a professional 16-channel network video recorder designed for advanced residential and commercial video surveillance installations. Combining 16 IP video channels, 8 integrated PoE ports, up to 160Mbps bandwidth, 4K HDMI output and dual hot-swappable HDD storage, it provides a powerful foundation for modern Ajax surveillance systems.

Professional 16-Channel Video Surveillance

Ajax H2D8PAC Cyprus supports up to 16 IP video channels, making it suitable for larger homes, offices, shops, warehouses, hospitality environments and commercial properties.

Eight cameras can be connected directly through the integrated PoE interfaces, while additional compatible IP cameras can be integrated through the network.

This provides greater flexibility when a surveillance project requires more cameras than the number of physical PoE ports available directly on the recorder.

8 Integrated PoE Ports

One of the key advantages of Ajax H2D8PAC Cyprus is its integrated 8-port PoE switch.

Power over Ethernet allows compatible cameras to receive network connectivity and electrical power through the same Ethernet cable, simplifying installation and reducing the amount of separate power infrastructure required around the property.

The PoE interfaces support IEEE 802.3af/at compatible devices.

Up to 160Mbps Bandwidth

The H2D8PAC provides up to 160Mbps incoming and 160Mbps outgoing bandwidth, providing the performance required to manage multiple high-resolution video streams.

High available bandwidth becomes particularly important in professional installations where several cameras record simultaneously at high resolutions and frame rates.

Recording Resolution up to 12MP

The recorder supports surveillance cameras with recording resolutions up to 12MP.

Supported resolutions include 12MP, 8MP/4K, 6MP, 5MP, 4MP, 3MP, 1080p and 720p.

This flexibility makes the recorder suitable for installations combining different camera resolutions within the same surveillance infrastructure.

4K HDMI Local Monitoring

A dedicated HDMI connection provides local video output with resolution up to 3840 × 2160 4K.

The NVR can therefore be connected directly to a compatible 4K television or professional security monitor.

This is particularly useful for reception areas, security rooms and other environments requiring permanent local camera monitoring.

Dual Hot-Swap HDD Storage

Ajax H2D8PAC Cyprus provides two SATA III storage bays supporting hot-swappable hard drives.

Each bay can accommodate a compatible HDD with capacity up to 16TB, providing a potential physical storage capacity of up to 32TB when two drives are installed.

Hard drives are not included and should be selected according to the required recording retention period and surveillance workload.

Hot-Swap Architecture

Hot-swap storage is particularly valuable in professional surveillance environments.

Compatible drives can be serviced or replaced while minimizing interruptions to the surveillance infrastructure.

For businesses requiring continuous video recording and easier storage maintenance, this provides a significant advantage over conventional single-drive NVR systems.

Redundancy and Split Recording

The H2D8PAC provides flexible two-drive recording configurations.

Redundancy Mode can preserve recordings across both installed storage devices, providing additional protection for important surveillance footage.

Split Mode can distribute recording workloads between storage devices to make efficient use of available capacity.

The appropriate configuration can therefore be selected according to the requirements of each surveillance project.

H.265, H.264 and JetSparrow

The recorder supports H.265 and H.264 video compression together with Ajax JetSparrow technology.

Efficient video processing helps reduce bandwidth and storage requirements while preserving the video quality required for security applications.

This becomes increasingly important when high-resolution cameras are recording continuously.

Ajax Video Surveillance Ecosystem

Ajax H2D8PAC Cyprus integrates into the Ajax video surveillance environment, allowing users and security professionals to manage cameras and recordings through the Ajax ecosystem.

Features such as video walls, event navigation and archive access make it easier to monitor larger installations and locate important security events.

Video surveillance can also work alongside other Ajax security devices to provide more complete visual verification of alarm events.

ONVIF and RTSP Compatibility

The system is not restricted exclusively to Ajax cameras.

Compatibility with established IP video protocols such as ONVIF and RTSP allows compatible third-party surveillance cameras to be incorporated into the installation.

This makes the H2D8PAC particularly useful when upgrading an existing CCTV installation without necessarily replacing every compatible camera.

Designed for Professional Installations

For professional CCTV projects, Ajax H2D8PAC Cyprus combines multi-camera recording, integrated PoE connectivity, high network bandwidth, substantial storage capacity and 4K local monitoring in one platform.

The combination makes it particularly suitable for projects requiring both reliable continuous recording and straightforward system expansion.

Technical Specifications

Why Buy Ajax H2D8PAC Cyprus from EMAGCY?

Ajax H2D8PAC Cyprus provides a strong foundation for professional surveillance projects requiring more flexibility than a conventional 8-channel recorder.

With support for up to 16 IP video channels and 8 integrated PoE connections, the system allows eight cameras to connect directly while leaving capacity for additional compatible network cameras.

Up to 160Mbps bandwidth, 12MP recording support and 4K HDMI output provide the performance required for modern high-resolution CCTV installations.

Dual hot-swappable HDD bays with potential capacity up to 32TB provide substantial recording storage while offering flexible redundancy and split-storage configurations.
